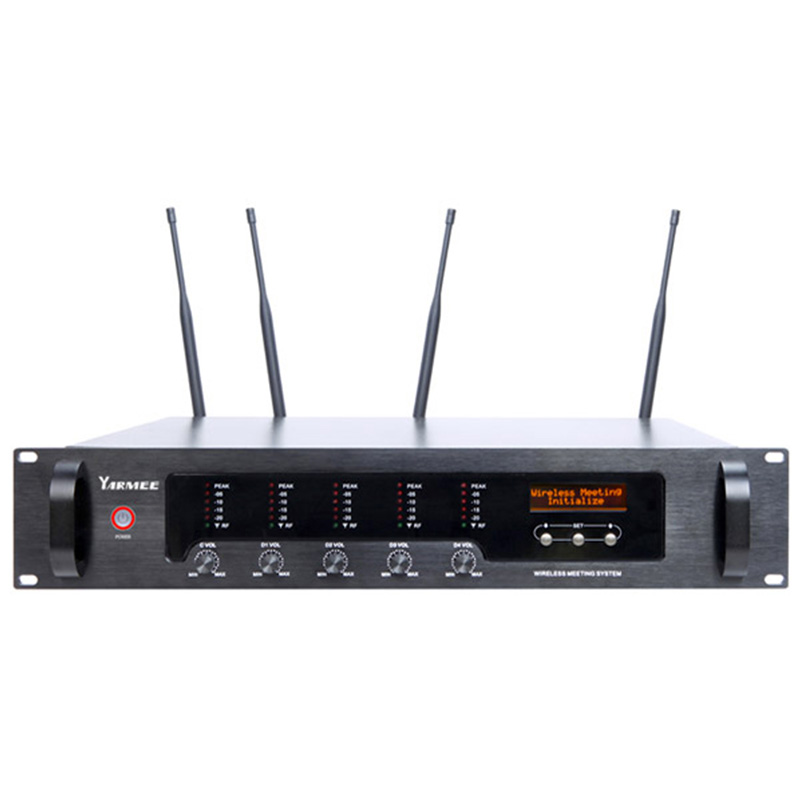

YCU892 With high flexibility and reliability, our UHF wireless conference system is an ideal choice for mobile conference systems. It offers simple operation, compact structures. The wireless conference system can be perfectly integrated into any meeting rooms, without additional wiring. It’s the best wireless conference solutions for small-scale conferences.
● Support Meeting Mode: Limit (1/2/3/4), FIFO (1/2/3/4), Chairman Only
● Support up to 999 units microphones with one YCU892M, 5 microphones can be turned on at the same time.
● 8 hours during speech or approx. 30 hours when standby.
● Adopt multi-channel high band and intermediate band frequency selective filtering, fully eliminate interference signal
● Anti-interference from cellphone
● Operation distance up to 100 meters

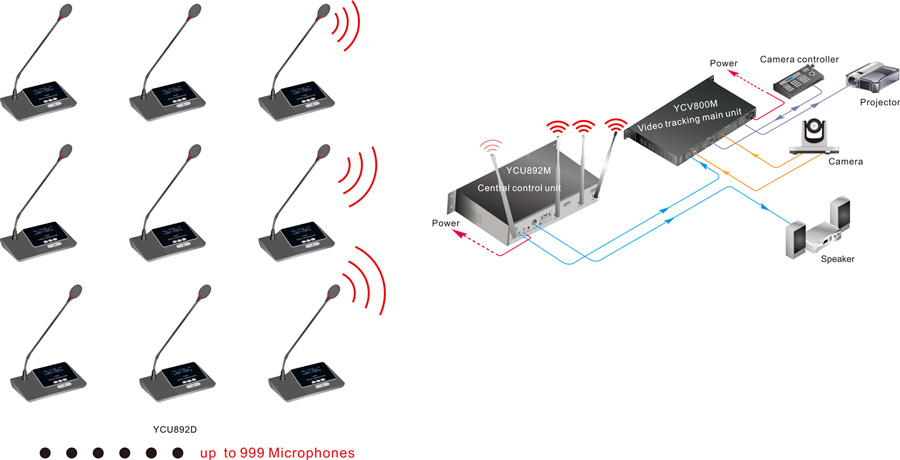

● Support video camera auto-track
Audio Channel
| Transmission method | UHF Wireless (one way) |
| Audio channel | 5(1 chairman, 4 |
| Carrier frequency band | 500MHz~950MHz |
| Modulation method | Fm |
| Receiving sensitivity | -100dBM |
| Audio gain | ≤20 |
| Frequency response | 50Hz-15KHz |
| S/N Ratio | >85dB |
| T.H.D. | <0.8% |
Data control channel
| Transmission method | Wireless (two-way) |
| Data channel | 16 |
| Frequency Range | 422.4MHz ~ 438.4MHz |
| Modulation method | FSK |
| Receiving sensitivity | -100dBM |
| Transmission consumption | ≤6dBm |
| Communication rate | 100KBPS |
| Frequency deviation | ＜0.002 |
System
| Power supply | DC12~15V ≤1A |
| Signal covering range | Radius 60 meters |
| Consumption Rating | 7 W |
| Operating temperature range | -10-40 degree |
| Dimensions | 485×355×85mm |
| N.W | 7kg |
